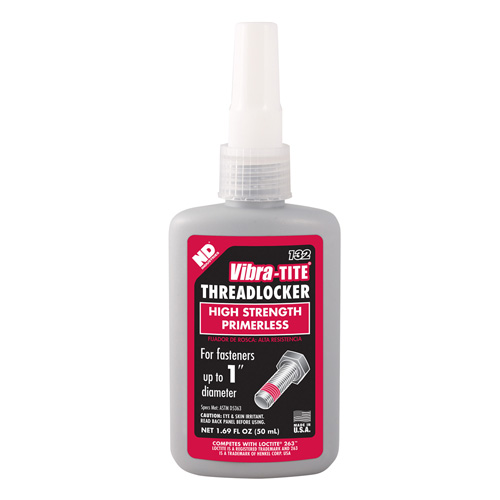

  • ND vibra-tite 132(ND263)高强度螺纹锁固胶
  • 打印

    电子邮件

  • 产品详情

    也许您正在使用ND262、ND271、ND272和ND277这几个产品:






    有时,您需要耐高温的产品,有时,您需要耐油的产品,有时,您需要固定大螺钉,有时,您需要填充间隙大的产品……所以,您不得不准备很多不同性能的高强度螺纹锁固胶粘剂。


    但是现在您不必需要那么多种产品了,因为我们有了ND263,一支搞定!

    ND263——耐高温、耐油、高强度螺纹锁固密封胶

    产品说明:

    ND 263适合于永久性锁固和密封螺纹紧固件。该产品在隔绝氧气的金属密封面间固化,可以防止由于震动或冲击而引起的松动或泄漏。此产品耐高温抗油脂。它能容许各种轻微表面污染,诸如切割油、润滑油、防腐蚀剂和保护液所含的油污等。



    典型应用:

    ND 263特别适合重载应用,如发动机箱螺栓、泵壳螺栓以及其他大强度紧固件的装配。ND 263固化性能很好,不仅在作用于活性金属(诸如黄铜、紫铜),同时作用于惰性基材,诸如不锈钢和镀层表面。


    技术特征:

    化学类型: 甲基丙烯酸酯

    颜色: 红色

    初固速度: 10-25分钟

    粘度: 400-600cps

    保质期(25℃): 24个月(未开封)

    工作温度: -51℃至180

    固化性能:

    完全固化时间: 24小时

    典型破坏强度: 16.8-34.8 N•m


    典型拆卸强度: 19.2-39.6 N•m


    该产品性能同LOCTITE263产品.

    Vibra-Tite Part # Available Sizes Competes with Loctite® # Approx. Viscosity
    (cP)
    Max Gap Fill (IN) Torque Break / Prevail
    (in LB)
    Temp
    Range °F
    Fixture
    Time
    Specific Gravity Primer Specs Met
    111   222 Low Strength - Removable - Purple
    11102 2 mL Bullet 900 - 1500 Thixotropic 0.007 75 / 25 -65 to 300 15-20min 1.05 N, T MIL-S-46163A, ASTM D-5363, NSF Non-Food
    11110 10 mL Bottle 21463
    11150 50 mL Bottle 21464
    11125 250 mL Bottle
    11100 1 L Jug
    11199 100 pc Fishbowl
    121   242 Medium Strength - Removable - Blue
    12102 2 mL Bullet 900 - 1500 Thixotropic 0.007 100 / 45 -65 to 300 10 - 20min 1.06 N, T MIL-S-46163A, ASTM D-5363, NSF Non-Food
    12110 10 mL Bottle 24221
    12150 50 mL Bottle 24231
    12125 250 mL Bottle 24241
    12100 1 L Jug 24243
    12199 100 pc Fishbowl
    122   243 Oil Tolerant - Removable - Blue
    12202 2 mL Bullet 1300 - 3000 Thixotropic 0.015 195 / 70 -65 to 300 20 - 30min 1.1 N, T
    12210 10 mL Bottle 24077
    12250 50 mL Bottle 24078
    12225 250 mL Bottle 24079
    12200 1 L Jug 21433
    12299 100 pc Fishbowl
    123   246 Medium Strength High Temp - Blue
    12350 50 mL Bottle 29514 2600 -65 to 450 5min 1.15 ASTM D-5363
    125   Medium Strength Gel - Removable - Blue
    12508 8 mL Tube Gel 0.015 120 / 45 -65 to 300 20 - 30min 1.1 N, T
    12508BC 8 mL Tube
    12535 35 mL Pump
    131   262 Permanent Strength - Red
    13102 2 mL Bullet 1300 - 2300 Thixotropic 0.007 200 / 250 -65 to 300 15 - 20min 1.1 N, T MIL-S-46163A, ASTM D-5363, NSF Non-Food
    13110 10 mL Bottle 26221
    13150 50 mL Bottle 26231
    13125 250 mL Bottle 26241
    13100 1 L Jug 26243
    13199 100 pc Fishbowl
    132   263 High Strength Primerless - Red
    13250 50 mL Bottle 1330585 400-600 0.007 275 / 290 -65 to 360 5min 1.1 ASTM D-5363
    135   Permanent Strength Gel - Red
    13508 8 mL Tube Gel 0.015 200 / 100 -65 to 300 20 - 25min 1.1 N, T
    13508BC 8 mL Tube
    13535 35 mL Pump
    13525 250 mL Tube
    137   272 High Temp/High Strength - Red
    13750 50 mL Bottle 27240 4000 - 12000 0.007 300 / 200 -65 to 400 20 - 30min 1.1 N, T
    13725 250 mL Bottle 27270
    13700 1 L Jug 27285
    140   271 High Strength - Red
    14002 2 mL Bullet 400-600 0.007 250 / 250 -65 to 300 10 - 15min 1.1 N, T MIL-S-46163A, ASTM D-5363
    14010 10 mL Bottle 27121
    14050 50 mL Bottle 27131
    14025 250 mL Bottle 27141
    14000 1 L Jug 27143
    14099 100 pc Fishbowl
    146   277 Large Diameter/High Strength - Red
    14602 2 mL Bullet 6000 - 8000 0.01 250 / 250 -65 to 300 30 - 40min 1.1 N, T MIL-S-46163A, ASTM D-5363
    14610 10 mL Bottle 21434
    14650 50 mL Bottle 27731
    14625 250 mL Bottle 27741
    14600 1 L Jug 27743
    150   290 Medium Strength - Wicking Grade - Green
    15002 2 mL Bullet 20 - 55 0.004 85 / 200 -65 to 300 10 - 15min 1.1 N, T MIL-S-46163A, ASTM D-5363, NSF Non-Food
    15010 10 mL Bottle 29021
    15050 50 mL Bottle 29031
    15025 250 mL Bottle 29041
    15000 1 L Jug 29043
    325   425 Plastic Parts - Blue
    32520 20 gm Bottle 42540 80 0.004 4 / 2 -65 to 180 2min 1.1
