产品详情

锁固及密封螺纹紧固件

•防止由于冲击及振动引起的紧固件松动

•表现优于锁紧垫圈，斜垫圈和其它机械锁定装置

•防止泄露

•减轻锈锁

ND243油膜表面可拆卸中等强度螺纹锁固胶粘剂

ND243是一种溶油型，中等强度厌氧螺纹锁固剂。是一种可以用普通工具拆卸的螺纹锁固剂。此产品可迅速粘接油性金属表面或惰性金属表面。ND243有良好的耐水及耐溶剂性。

取代了普通的锁紧垫片及塑料紧固制品。可锁紧螺栓、螺钉及液压系统的螺栓。可用于齿轮箱螺栓/驱动轴、轴承螺钉、钻孔螺丝、平头螺钉、滚筒式机械螺钉及其他机械设备中。

Vibra-Tite Part #	Available Sizes	Competes with Loctite® #	Approx. Viscosity (cP)	Max Gap Fill (IN)	Torque Break / Prevail (in LB)	Temp Range °F	Fixture Time	Specific Gravity	Primer	Specs Met
111		222	Low Strength - Removable - Purple
11102	2 mL Bullet		900 - 1500 Thixotropic	0.007	75 / 25	-65 to 300	15-20min	1.05	N, T	MIL-S-46163A, ASTM D-5363, NSF Non-Food
11110	10 mL Bottle	21463
11150	50 mL Bottle	21464
11125	250 mL Bottle
11100	1 L Jug
11199	100 pc Fishbowl
121		242	Medium Strength - Removable - Blue
12102	2 mL Bullet		900 - 1500 Thixotropic	0.007	100 / 45	-65 to 300	10 - 20min	1.06	N, T	MIL-S-46163A, ASTM D-5363, NSF Non-Food
12110	10 mL Bottle	24221
12150	50 mL Bottle	24231
12125	250 mL Bottle	24241
12100	1 L Jug	24243
12199	100 pc Fishbowl

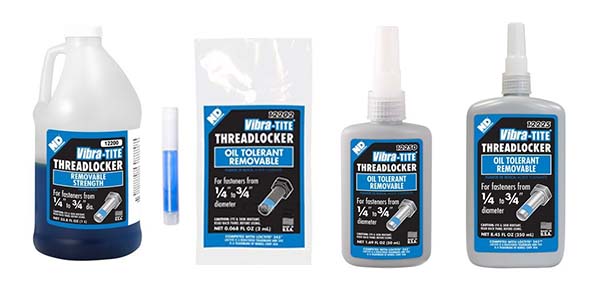

122		243	Oil Tolerant - Removable - Blue
12202	2 mL Bullet		1300 - 3000 Thixotropic	0.015	195 / 70	-65 to 300	20 - 30min	1.1	N, T
12210	10 mL Bottle	24077
12250	50 mL Bottle	24078
12225	250 mL Bottle	24079
12200	1 L Jug	21433
12299	100 pc Fishbowl
123		246	Medium Strength High Temp - Blue
12350	50 mL Bottle	29514	2600			-65 to 450	5min	1.15		ASTM D-5363
125			Medium Strength Gel - Removable - Blue
12508	8 mL Tube		Gel	0.015	120 / 45	-65 to 300	20 - 30min	1.1	N, T
12508BC	8 mL Tube
12535	35 mL Pump
131		262	Permanent Strength - Red
13102	2 mL Bullet		1300 - 2300 Thixotropic	0.007	200 / 250	-65 to 300	15 - 20min	1.1	N, T	MIL-S-46163A, ASTM D-5363, NSF Non-Food
13110	10 mL Bottle	26221
13150	50 mL Bottle	26231
13125	250 mL Bottle	26241
13100	1 L Jug	26243
13199	100 pc Fishbowl
132		263	High Strength Primerless - Red
13250	50 mL Bottle	1330585	400-600	0.007	275 / 290	-65 to 360	5min	1.1		ASTM D-5363
135			Permanent Strength Gel - Red
13508	8 mL Tube		Gel	0.015	200 / 100	-65 to 300	20 - 25min	1.1	N, T
13508BC	8 mL Tube
13535	35 mL Pump
13525	250 mL Tube
137		272	High Temp/High Strength - Red
13750	50 mL Bottle	27240	4000 - 12000	0.007	300 / 200	-65 to 400	20 - 30min	1.1	N, T
13725	250 mL Bottle	27270
13700	1 L Jug	27285
140		271	High Strength - Red
14002	2 mL Bullet		400-600	0.007	250 / 250	-65 to 300	10 - 15min	1.1	N, T	MIL-S-46163A, ASTM D-5363
14010	10 mL Bottle	27121
14050	50 mL Bottle	27131
14025	250 mL Bottle	27141
14000	1 L Jug	27143
14099	100 pc Fishbowl
146		277	Large Diameter/High Strength - Red
14602	2 mL Bullet		6000 - 8000	0.01	250 / 250	-65 to 300	30 - 40min	1.1	N, T	MIL-S-46163A, ASTM D-5363
14610	10 mL Bottle	21434
14650	50 mL Bottle	27731
14625	250 mL Bottle	27741
14600	1 L Jug	27743
150		290	Medium Strength - Wicking Grade - Green
15002	2 mL Bullet		20 - 55	0.004	85 / 200	-65 to 300	10 - 15min	1.1	N, T	MIL-S-46163A, ASTM D-5363, NSF Non-Food
15010	10 mL Bottle	29021
15050	50 mL Bottle	29031
15025	250 mL Bottle	29041
15000	1 L Jug	29043
325		425	Plastic Parts - Blue
32520	20 gm Bottle	42540	80	0.004	4 / 2	-65 to 180	2min	1.1
